950TVL Mini Explosion Proof CCTV Camera With IR Illuminator For Oil Tank Vessel IP68-Stainless Steel

SY13-950 is SAKIA new developed mini explosion proof camera, which is built into 950TVL with fixed lens.

SY13-950 is also equipped with IR illuminator, which night vision distance is 0-30 meters.

The Camera housing is made of stainless steel 316L material and IP68 watherproof rated,

special for hazardous area with explosive gas, oil, chemicals, powders.

SH13-950 Features

Explosion proof, Smart design

SH13-950 is designed as analog 950TVL mini explosion proof camera with IR illuminator, which

can apply for hazardous area, like gas zone 1, gas zone 2, dust zone 21, and dust zone 22.

IP68 rated, Stainless Steel housing

SH13-950 explosion proof camera housing is IP68 rated, and its housing material can be made

of stainless steel 304, or 316L. The housing prevents any inside sparks or explosions from

escaping and igniting vapors, gases, dust for fibers in the surrouding air.

Analog 950TVL Camera with IR illumination

SH13-950 is ready to use camera, composited with 950TVL camera and optional lens (3.6mm,

6mm, 8mm,12mm). SH13-950 its infrared illumination has 0-30m night vision distance.

Adjustable view angle

SH13-950 can be manual adjust to get different view angle. Its vertical view angle is from -75° to +75°.

Power source input

SH13-950 power input can be DC12V. Its power consumption Max is 6W.

Hazardous area application

Explosion proof camera with wiper system suitable for industry aggressive area, such as off shore & onshore drilling rigs, marine vessel, oil refinery, gas plants, fueling station, paint & parnish manufacturing plants, grain processing industries, fertilizer plants, hospital operating room,wood processing zone,sugar industry,metal surface polishing, especially aluminite powder.

SY13-950 Technical Data Download

SY13-950 data sheet (EN) download link

Accessories

	Explosion Proof flexible tube, Ø16*1000mm, with G3/4 connector,	SP12
	Explosion Proof junction box	SF17

Optional Models

SY13-950, Exd 316L 950TVL Explosion Proof Camera with IR illuminator

SY13-950S, Exd 304 950TVL Explosion Proof Camera with IR illuminator

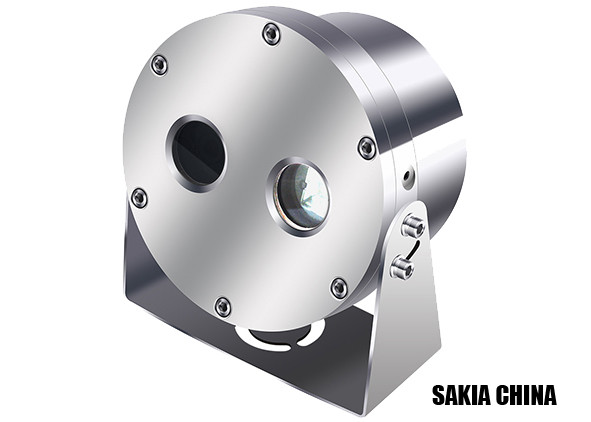

950TVL Mini Explosion Proof CCTV Camera With IR Illuminator For Oil Tank Vessel Images
